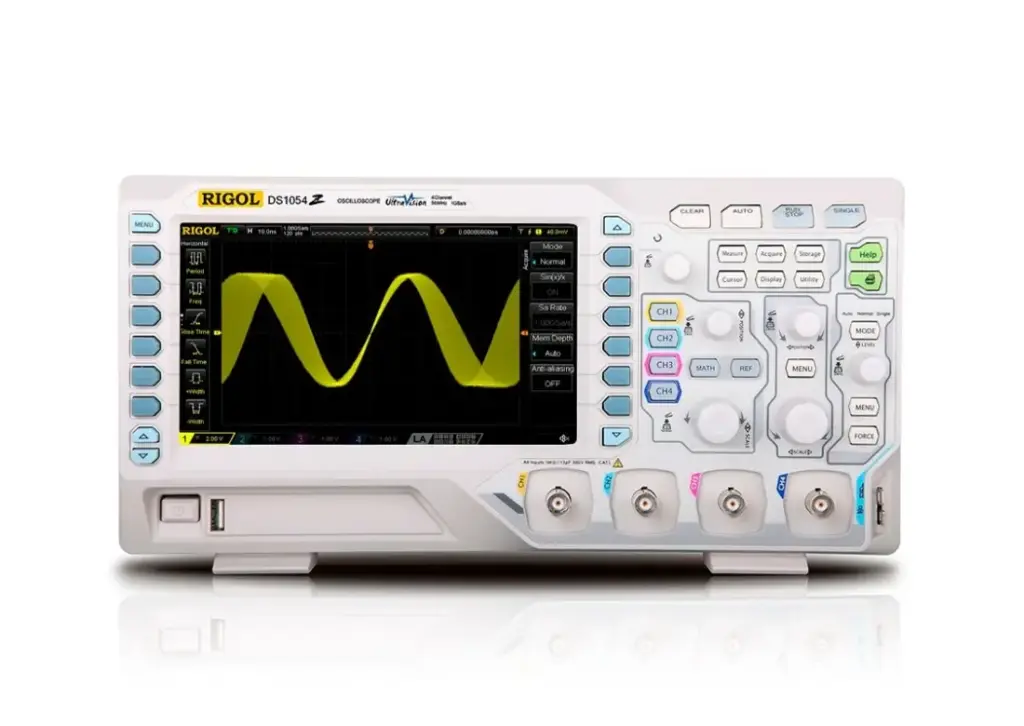

Rigol Oscilloscope 1054Z with extra scopes
- 4 Channels, 50 MHz Bandwidth
- UltraVision: Deeper memory 12 Mpts upgradable to 24 Mpts via a software key ( this is not a typo. This scope has 12 Megs of Memory standard! )
- Up to 30,000 wfms/s Waveform capture rate
- HUGE 7'' screen WVGA(800X480) TFT
- USB HOST, USB DEVICE, LAN, Aux (TrigOut /PassFail)
- Incredible display with multi-Level intensity grading display
- Realtime waveform Record,Replay, function (Opt.)
- A variety of Math Functions
Product Description
RIGOL Digital Oscilloscope DS1000Z Series
The 1000Z Series is RIGOL’s Digital Oscilloscope platform for Basic Visualization. It offers unprecedented value in customer applications with its innovative technology. They come as 4 channel oscilloscopes in 50, 70, or 100 MHz versions with a 7 inch display and RIGOL's UltraVision technology.
Innovative UltraVision Technology(Analog Channel)
- Deep Memory Depth (up to 24 Mpts)
- Higher Waveform Capture Rate (up to 30,000 wfms/s)
- Real-time Waveform Recording&Playback (up to 60,000 frames)
- Intensity Graded Color Display
Main Features
- Analog channel bandwidth: 100 MHz, 70 MHz, 50 MHz
- 4 analog channels, 16 digital channels (only available for DS1000Z Plus that has been upgraded with the RPL1116 probe kit)
- Real-time sample rate up to 1 GSa/s
- Memory depth up to 24 Mpts
- Up to 30,000 wfms/s waveform capture rate
- Up to 60,000 frames hardware real-time waveform recording and playback functions
- Various trigger and bus decoding functions
- Low noise floor, vertical scale range: 1 mV/div to 10 V/div
- Built-in dual-channel 25 MHz function/arbitrary waveform generator (only for "-S" Models)
- Various interfaces: USB Host&Device, LAN (LXI), AUX
- Compact size, light weight, easy to use
- 7 inch WVGA (800x480) TFT LCD, intensity graded color display
4 Analog Channels
Visualize 4 analog channels simultaneously with full bandwidth. Find bugs and resolve problems faster with better visibility and signal comparison.
24Mpts Storage Depth
Standard 24 MPts memory depth (in 1 channel mode) allows the user to give full consideration to the overall signal details, while maintaining a high sampling rate for a longer period of time. Zoom in to view small signal details in the complete waveform record.
Hardware Waveform Recording and Playback
Record up to 60,000 frames of a dynamic signal and play them back like a movie for analysis and training. Locate infrequenct issues over long time periods and go directly to the issue.
Serial Bus Triggering and Decoding
Decode and trigger on serial bus systems including RS232, UART, I2C, and SPI all from the Oscilloscope's display. Gather data in hex, binary, or ascii and export to an event table for further analysis.
Digital Fluorescent Display
Gray level display capability, similar to fluorescent display effect, highlighting the smallest changes in the waveform over time
Mixed Signal Analysis Capability
The "plus" models accepts the optional accessory probe (RPL1116). Together these provide 16 digital logic channels in addition to the 4 analog channels. Use this to test multiple analog and digital signals at the same time and analyze bus signals more conveniently.
Two 25MHz Signal Sources
The "-S" models contain two 25MHz arbitrary waveform generator channels. Use these for comparison, validation, and convenience with the analog channels. Move captured wave data directly to the generator channel for signal verification.
